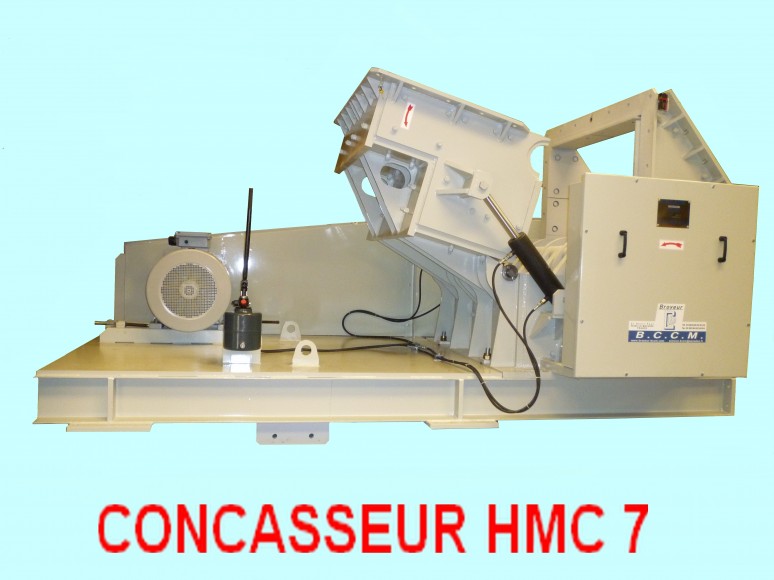

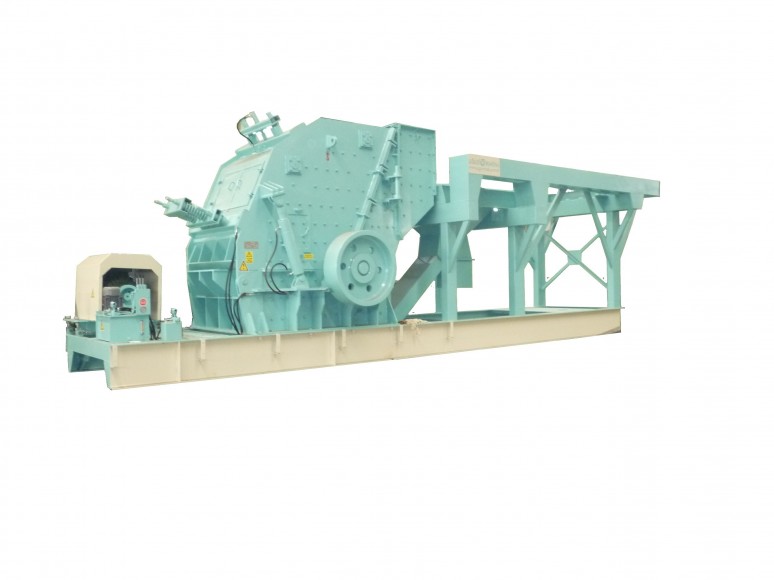

IMPACT CRUSHER
Here are a number of models, but given the specific nature of the applications, the crushers will be designed according to requirements.
Frame
Electro-welded structure of thick ribbed sheet metal with reinforcements and opening hinges.
Anvils
Special alloy steel impact plates with high abrasion resistance
Armouring
Total protection of the frame with thick armouring
Grids
Installation of large-section bars or perforated sheets on frames.
Rotor
Very large diameter shaft fully protected by the disc sleeves.
- Fully machined independent hammer holder discs forming a high inertia unit.
- Impact pads in manganese steel or special alloy steel.
- Bearings with spherical roller bearings on double rows of rollers.
CHARACTERISTICS OF OUR IMPACT CRUSHERS
- HMC (standard) - FMC (wood) - SMC (waste) | Entry opening mm | Driving force kW | Weight T | Output T/H |
---|---|---|---|---|
9/6 | 600 x 600 | 30 - 55 | 6 | 20 - 50 |
9/9 | 850 x 600 | 37 - 75 | 7,5 | 35 - 75 |
9/12 | 1100 x 700 | 55 - 90 | 10 | 50 - 100 |
9/14 | 1400 x 700 | 75 - 132 | 12,5 | 65 - 125 |
9/17 | 1700 x 700 | 90 - 160 | 15 | 80 - 150 |
12/12 | 1250 x 1100 | 110 - 200 | 20 | 100 - 200 |
12/16 | 1600 x 1100 | 132 - 280 | 30 | 125 - 300 |
15/18 | 1850 x 1500 | 200 - 450 | 40 | 150 - 450 |
